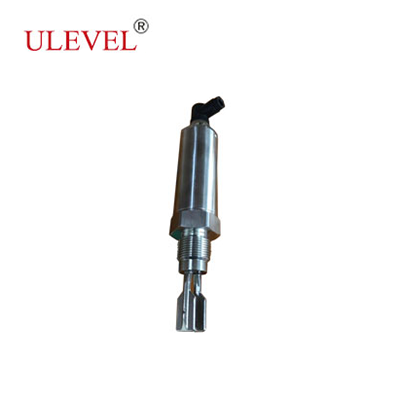

UVVE-C Compact Liquid Level Switch

Specifications



Insertion depth:70mm

Density: ≥0.5g/cm3

Power: 20?250VAC, 10?36VDC

Output: PNP, NPN

Process fitting: Thread, Flange, Clam

Process temperature: -50??250?

Process pressure: -0.1?2.5MPa

Ambient temperature: -40?80?

Protection rating: IP66/67

Vibrating rod: 304, 316L, ECTFE coating or PFA coating


Size diagram
Overview Of Compact Liquid Level Switch
Piezoelectric devices are utilized to achieve vibration drive and detection. Once resonant vibrating fork comes in contact with measured medium, vibration frequency of forks substantially decreases, and the output signal from piezoelectric detection device decreases accordingly. Then an integrated circuit is designed to analyze the signal from piezoelectric device and output a switch signal as a result.
