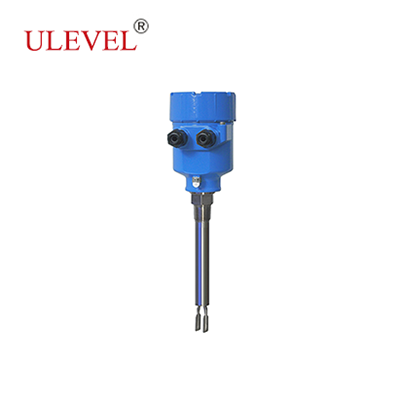

UVVE-H Extended Liquid Level Switch

Specifications


Insertion depth:70mm?6000mm

Density: ≥0.5g/cm3
Power: 20?250VAC/DC, 10?36VDC
Output: DPDT, 8mA/16mA
Process fitting: Thread, Flange, Clam
Process temperature: -50??250?
Process pressure: -0.1?6.4MPa
Ambient temperature: -40?80?
Protection rating: IP66/67
Vibrating rod: 304, 316L, ECTFE coating or PFA coating

Size diagram
Overview Of Extended Liquid Level Switch

Piezoelectric devices are utilized to achieve vibration drive and detection. Once resonant vibrating fork comes in contact with measured medium, vibration frequency of forks substantially decreases, and the output signal from piezoelectric detection device decreases accordingly. Then an integrated circuit is designed to analyze the signal from piezoelectric device and output a switch signal as a result.
