>> UVVR-H Extended Vibrating Rod Level switch

Product Display

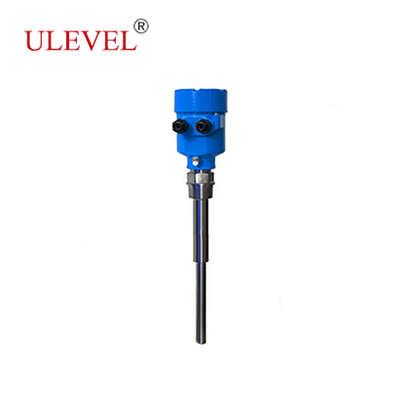

UVVR-H Extended Vibrating Rod Level switch

Specifications

Insertion depth:150mm?6000mm

Density: ≥0.02g/cm3

Power: 20?250VAC/DC, 10?36VDC(

Output: DPDT, 8mA/16mA

Process fitting: Thread, Flange

Process temperature: -50??250?

Process pressure: -0.1?1.6MPa

Ambient temperature: -40?80?

Protection rating: IP66/67

Vibrating rod: 304, 316L

Size diagram

Overview Of Extended Vibrating Rod Level switch

UVVR Vibrating Rod Level switch is based on Mechanical resonance principle.Under the action of the excitation circuit, the piezoelectric element drives the vibrator to vibrate at the resonant frequency.When the vibrating rod contacts with measured material, the vibration amplitude of the probe and the amplitude of output signal will be obviously deceased.After detecting this attenuation, the circuit outputs a switching signal.

RF Admittance Level Switch

UVCR RF Admittance Level Switch is a new product developed from capacitive level switch.Anti-hanging material (the material adhered by the sensor is called hanging material) has better performance, more reliable work, more accurate measurement and wider applicability.The meaning of "admittance" in "RF Admittance" is the reciprocal of impedance in electricity.It is composed of capacitive reactance ?impedance and inductive reactance. And "radio frequency" is high frequency,Therefore, radio frequency admittance technology can be understood as a method of measuring admittance with high-frequency current.

The important difference between RF admittance technology and capacitance technology is that it adopts three-terminal shielding technology and the diversity of measurement parameters, which not only solves the problem of parasitic capacitance temperature drift of connecting cables, but also solves the problem of sensor hanging.

Features

Advanced three-terminal shielding technology, strong anti-hanging ability.
